10200 Square Meter Steel Furniture Factory In China

Project information

Project location: Luoyang, China

Project size:60x170x23m

Project application: Steel furniture production workshop

Project details:5-Storey workshop and office

Background

This project is Dorian's domestic project, which is located in Luoyang City, Henan Province, China,

which is divided into two phases, the first phase is under construction now.

10200 Square Meter Steel Furniture Factory In China 01

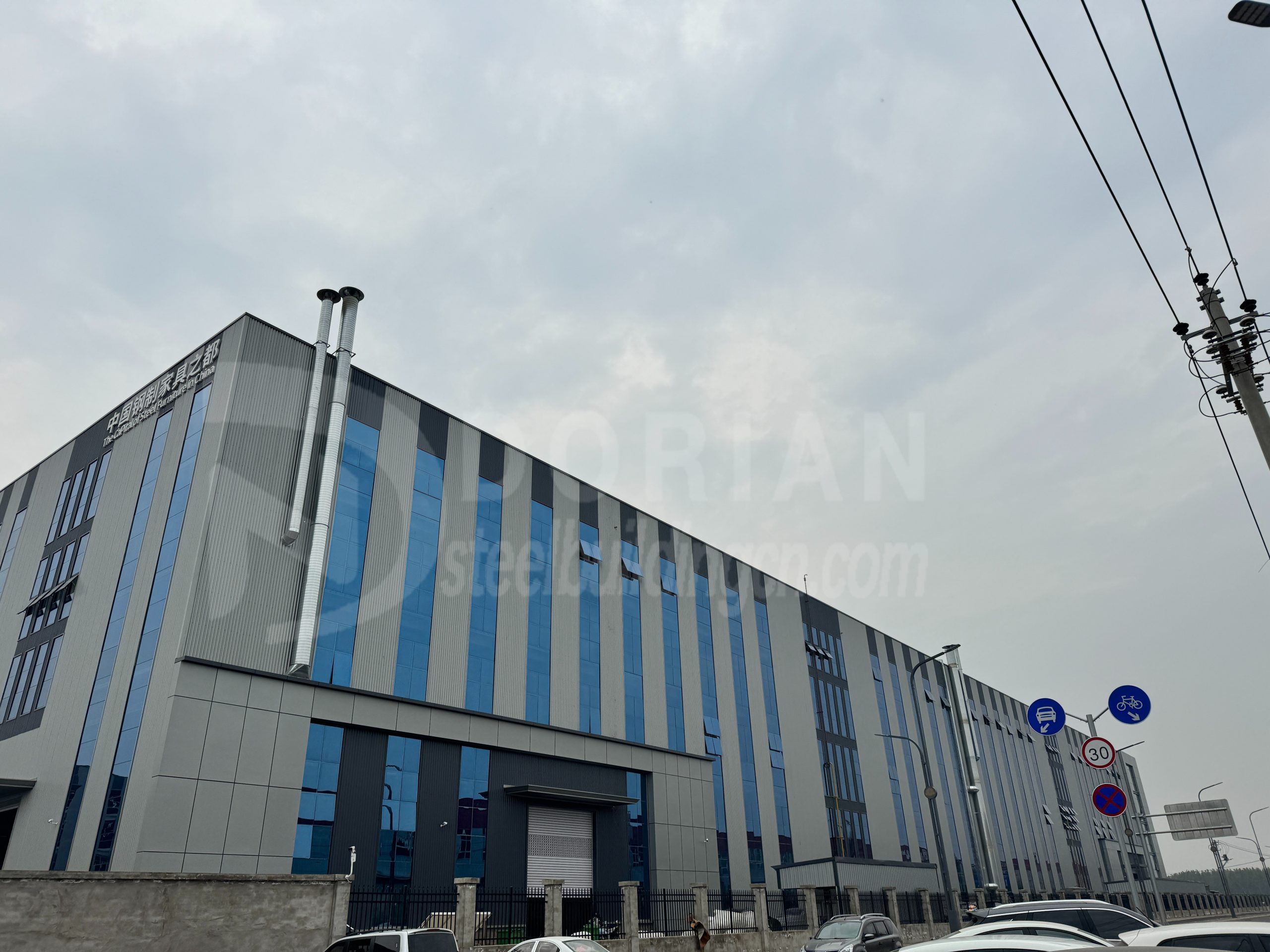

The phase one of the project has eight buildings and has been officially started on January 1, 2024. At present, Workshop A1 has been formally put into production, with building dimensions of 60x170x23 meters and 5 floors. The building contains production workshops, offices, toilets, warehouses and so on.

10200 Square Meter Steel Furniture Factory In China 02
10200 Square Meter Steel Furniture Factory In China 03

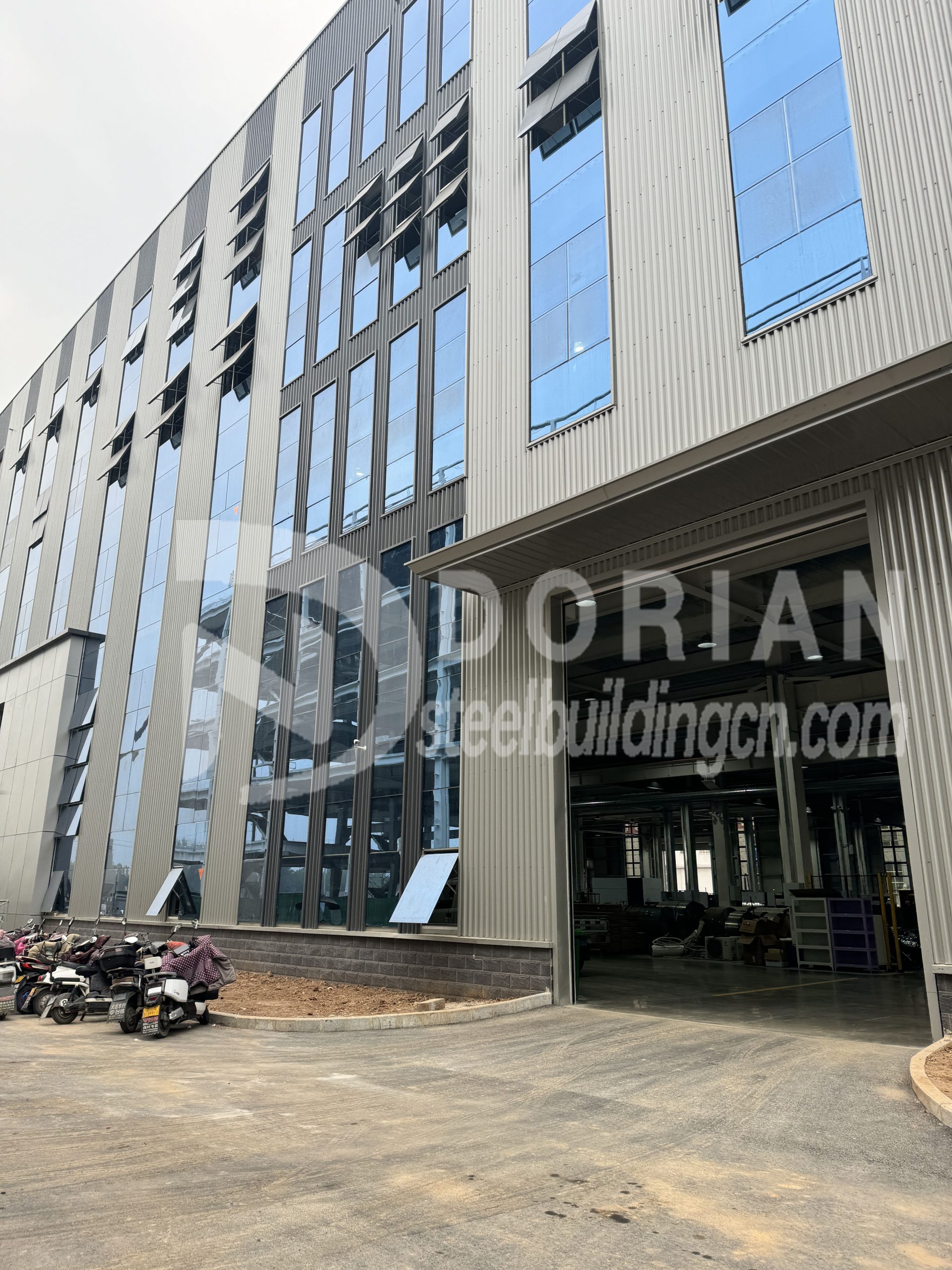

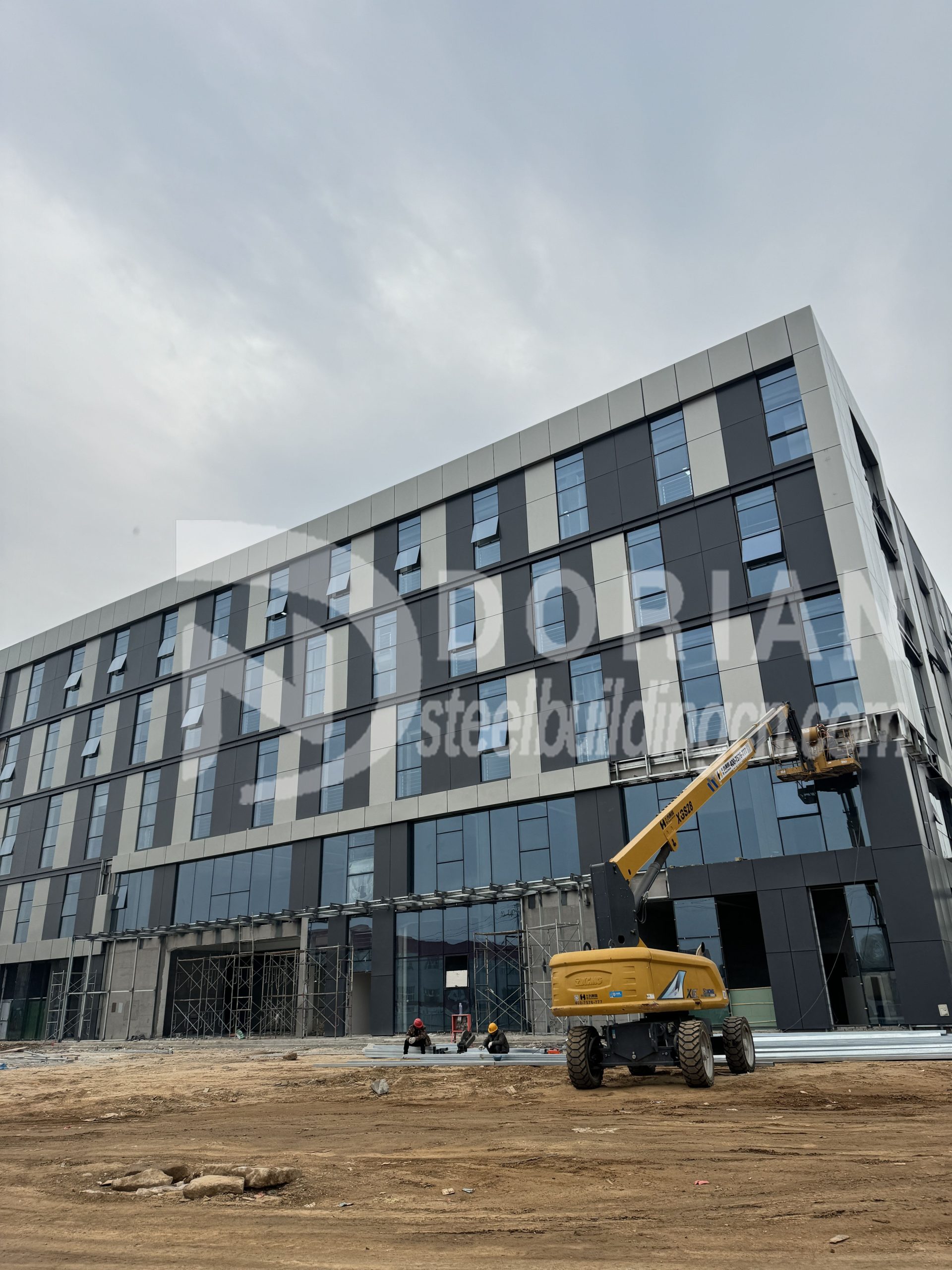

Different from the traditional workshop, the wall panel of A1 are made of 0.6 mm thick 750 mm single-layer grey steel sheets, plus grey aluminum cladding and glass curtain wall, which makes the building more aesthetically pleasing. It has a 1-meter brick wall, the main purpose of which prevents the back-up of rainwater during rainy days.

10200 Square Meter Steel Furniture Factory In China 04

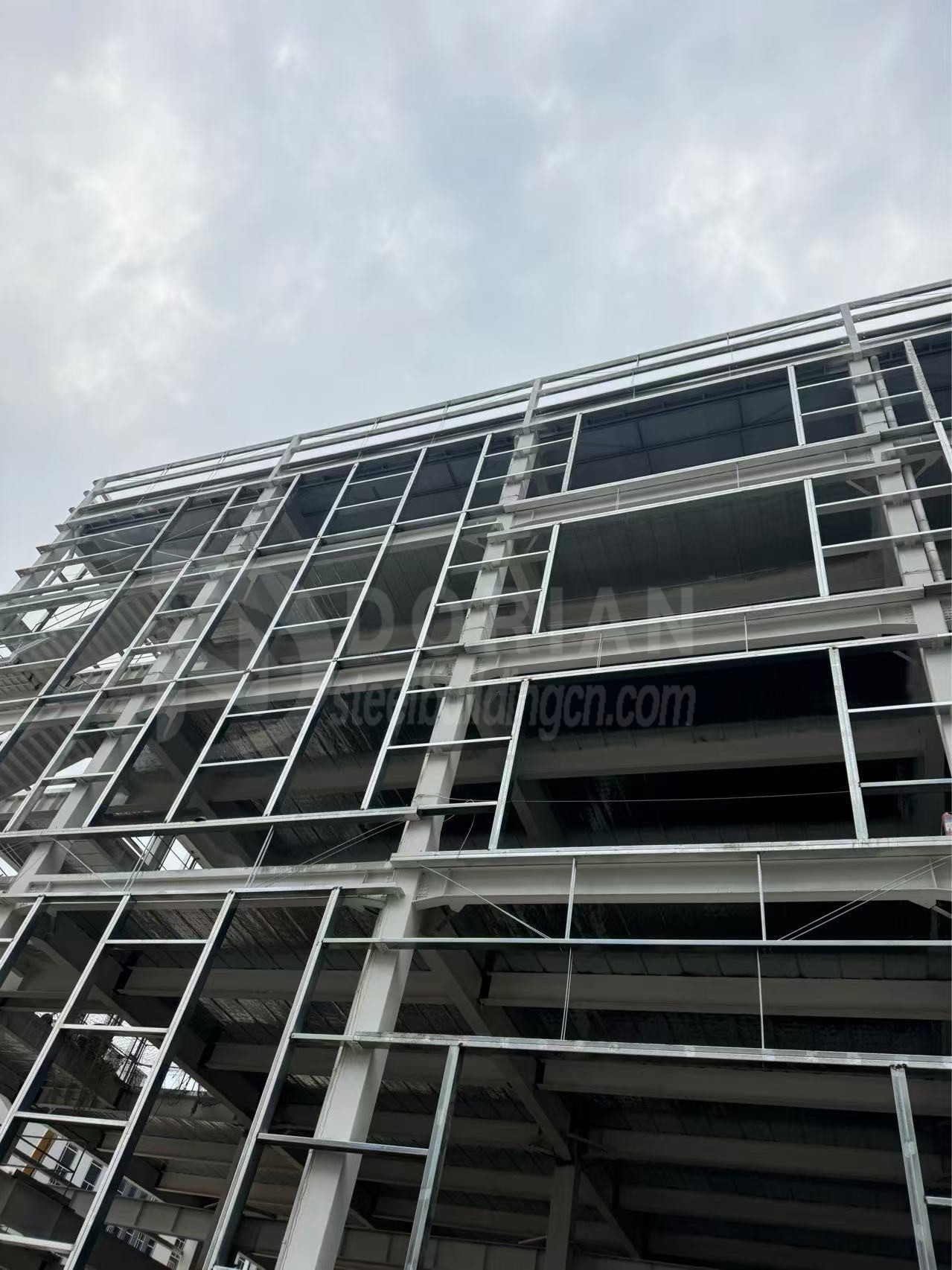

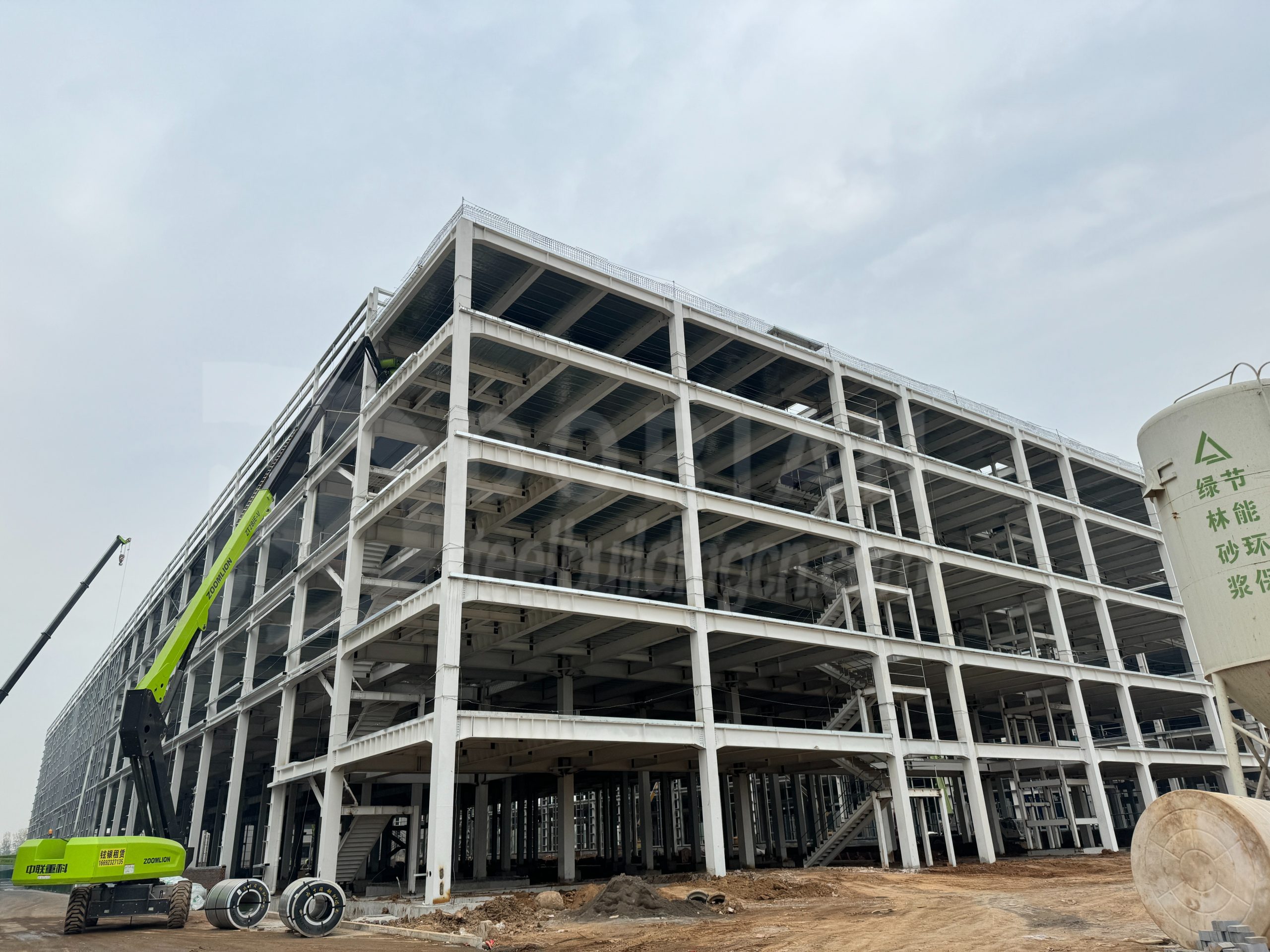

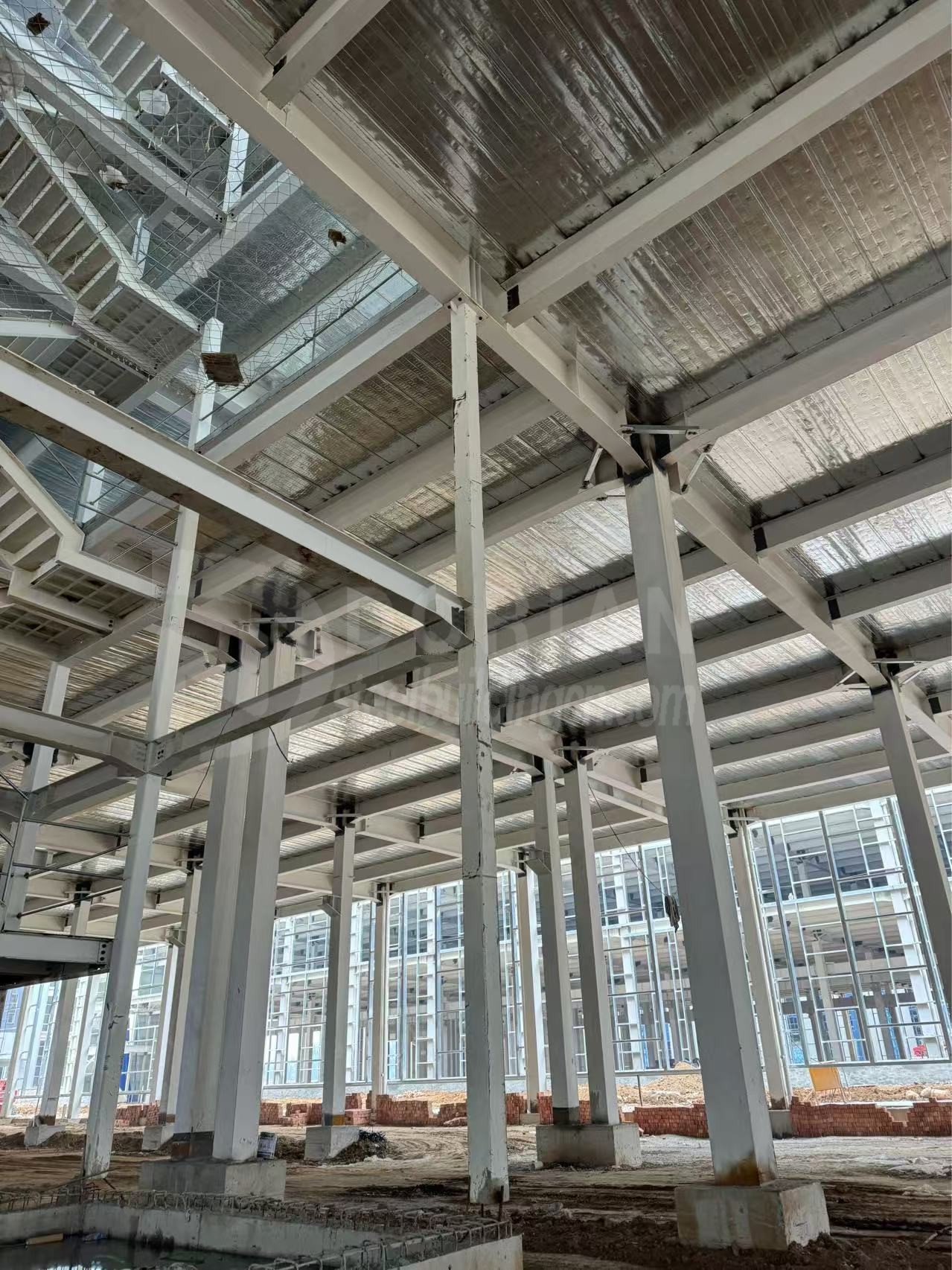

Building A2, which is currently in the process of being installed, is adjacent to workshop A1 and it has the same function and has the same dimensions, their overall design is also identical,this building is what we will mainly introduce today.

10200 Square Meter Steel Furniture Factory In China 05
10200 Square Meter Steel Furniture Factory In China 06

Design

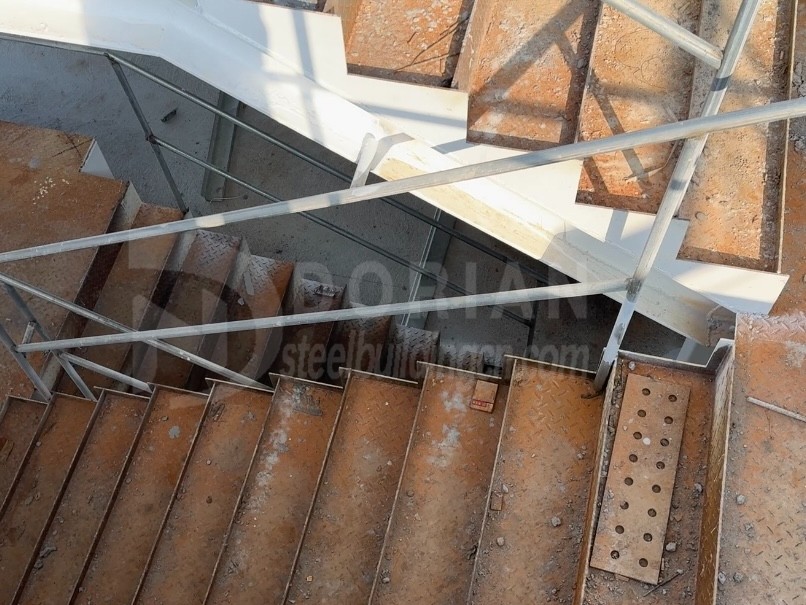

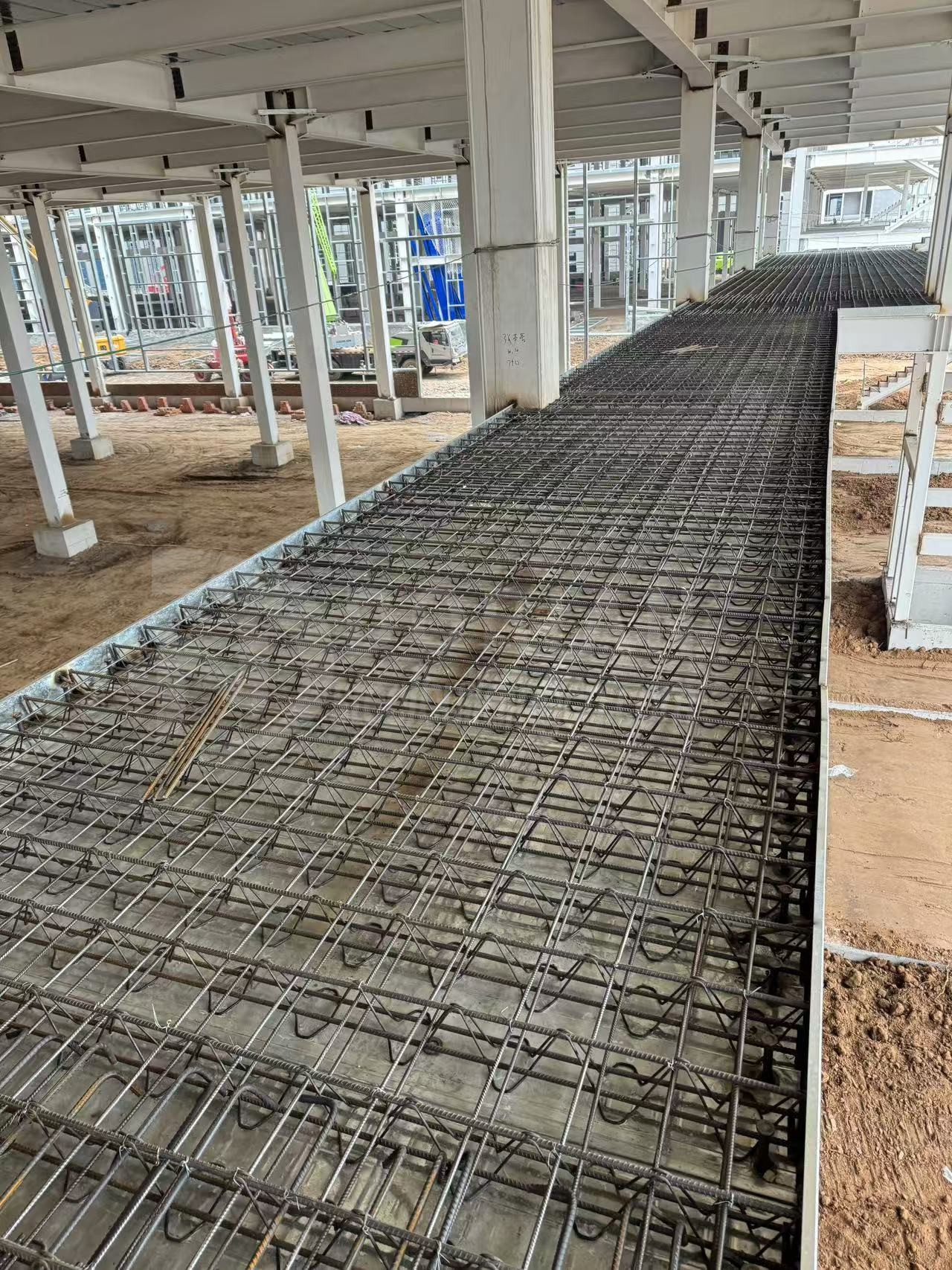

The building also added a mezzanine level in the first floor that could be used as an office or restroom, mezzanine floors are treated with laying the mezzanine plate, then a layer of rebar needs to be added, finally, the concrete poured over the floor . According to the customer's needs, all floors in addition to the conventional concrete treatment, but also add the carborundum and hardener. Dorian also provide the steel stair with patterned panels for the building.

Taking into account the load-bearing capacity of multi-storey buildings and the safety. The steel frame is box columns and H-beams, the surface applies 3 coats of paint , one coat of primer and two coats of surface paint, with a thickness of up to 120um, the color is white.

10200 Square Meter Steel Furniture Factory In China 07

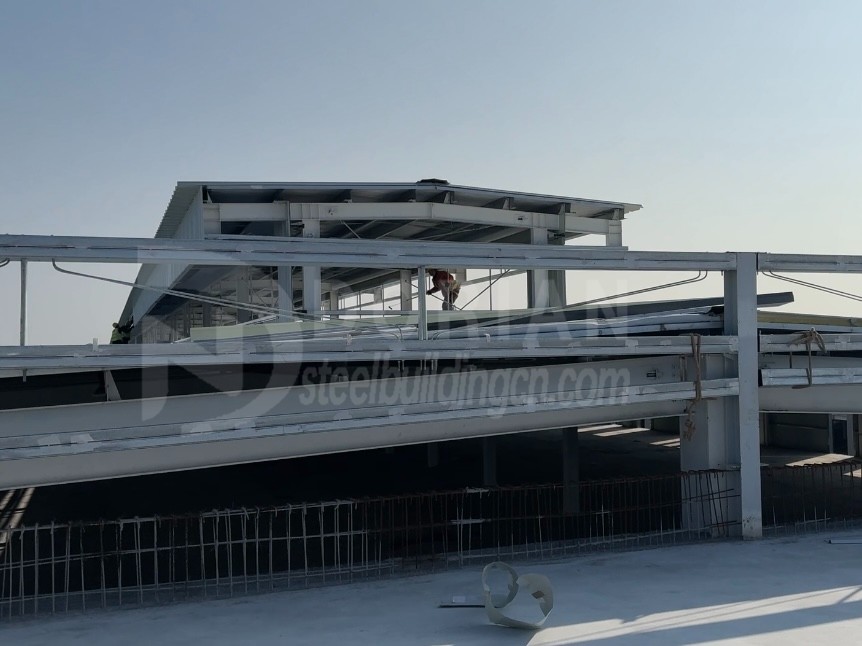

Based on insulation requirements, the roof is designed to the steel mesh and 100mm thick glass wool, the top layer is covered with a 0.6mm thick single steel sheet。In order to better ventilation effect, The roof is also equipped with a semi-automated ridge ventilator, considering to the safety and the aesthetics of the building, the top floor was added to the parapet wall. Besides, as the customer proposed to add solar panels on the roof to ensure the smooth production of the factory, the designer also took the change of roof load into full consideration during the design process.

10200 Square Meter Steel Furniture Factory In China 08
10200 Square Meter Steel Furniture Factory In China 09

Installation

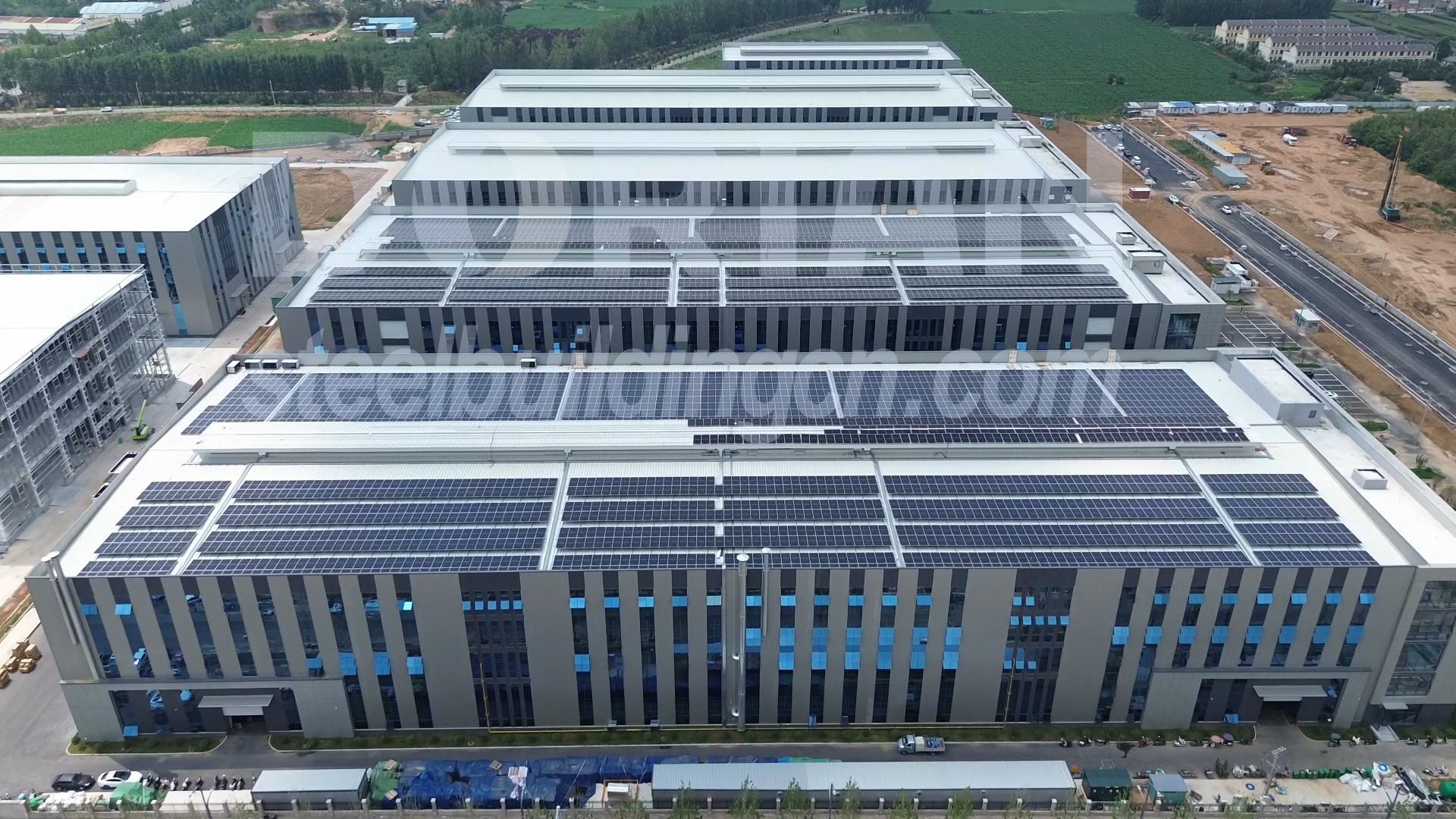

At present, the installation work of the whole building has been successfully completed. Afterwards, solar panels were installed on the roof according to customer needs. Now the warehouse has been put into use, The customer is very satisfied and recommend to the friends.

10200 Square Meter Steel Furniture Factory In China 10

Pls don’t hesitate to contact us if you have requirement about steel structure, welcome to your inquiry freely!
